Traditional workshop water usage follows a “single-use discharge” model, which not only wastes large amounts of water but also increases production costs due to high sewage treatment expenses. The circulating pure water treatment system, with its closed-loop design, deeply purifies used wastewater and converts it back into pure water that meets production standards for reuse. This achieves a water recycling rate of over 90%. As a result, workshop water consumption is greatly reduced, water expenses are cut by more than 60%, wastewater discharge is lowered, and environmental treatment costs are decreased—delivering the dual benefits of “water savings + cost reduction.”
| Reverse Osmosis (RO) Plant Parameter | |||||||
| Model |
|
|
|
|
|
|
|
| Flow rate (L/hr) | 500 | 1000 | 2000 | 3000 | 4000 | 6000 | 10000 |
| Inlet TDS | ≤1500ppm | ≤1500ppm | ≤1500ppm | ≤1500ppm | ≤1500ppm | ≤1500ppm | ≤1500ppm |
| Desalination | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% |
| Recovery rate | ≥60% | ≥60% | ≥60% | ≥60% | ≥60% | ≥60% | ≥60% |
| Power Supply | 220-240V/380-415V; Single phase or three phases | ||||||
| Pre-treatment | Sand filter + Activated carbon filter + Water softener (anti-scale dosing system)+ Sediment filter | ||||||
| Filter tank | FRP/stainless steel 304/carbon steel | ||||||
| Membrane housing | FRP/stainless steel 304/stainless steel 316 | ||||||
| RO membrane quantity | 4040×5 | 4040×10 | 8040×5 | 8040×9 | 8040×10 | 8040×14 | 8040×25 |
| Power (kW) | 3.2 | 4.5 | 6.3 | 8.5 | 10 | 15 | 30 |
| Pipeline | U-PVC/stainless steel 304/carbon steel | ||||||
The cooling and cleaning stages of die casting parts require extremely high water purity. If impurities or ions in the water exceed the standard, they may cause oxidation spots or rust marks on the surface of castings, and even affect the precision of subsequent spraying and assembly.

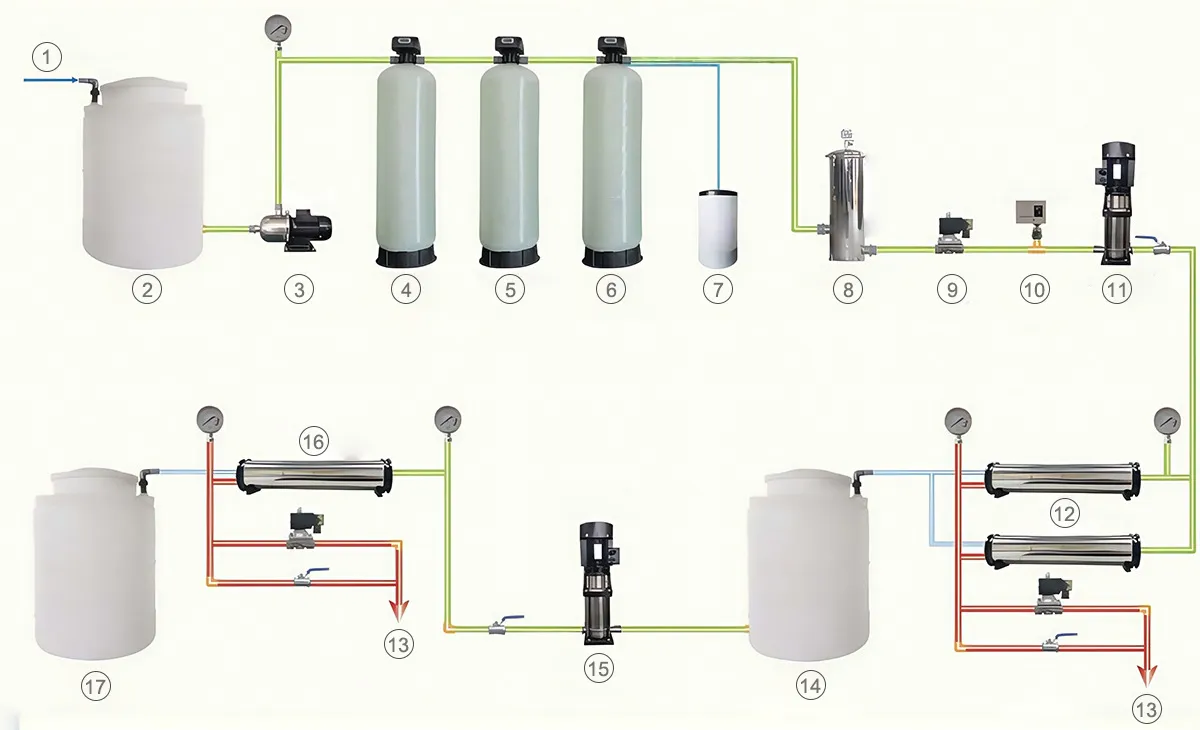

The circulating pure water treatment system uses core technologies such as multi-stage filtration, ion exchange, and reverse osmosis to precisely remove suspended matter, heavy metal ions, microorganisms, and other contaminants from the water. This ensures that water purity consistently meets the industry’s strict standards.
Stable and continuous pure water supply guarantees that every cooling process is uniform and efficient, and every cleaning step is thorough and clean. By addressing water quality issues at the source, it reduces product scrapping and safeguards the precision quality of die castings.
We provide complete mold temperature control solutions to help you achieve stable quality, shorter cycles and reduced costs. Let’s find the right system for your needs.
Install temperature warning devices that trigger alarms if limits are exceeded, and prepare backup cooling or heating systems for immediate adjustment.
Select the cooling medium according to mold temperature requirements and operating environment (e.g., water or heat-transfer oil). Apply filtration and purification. For water, use rust inhibitors to prevent corrosion.
Standard warranty is 12 months from acceptance. It covers non-human faults with free repairs, replacement of faulty parts, and technical support.
A response system is in place with performance tracking. If service is unsatisfactory, customers may escalate complaints to customer support, which ensures follow-up by assigned personnel.
