0-320℃
0-320℃
| Model |
|
|
|
| Max. heating temperature | 320℃ | 320℃ | 320℃ |
| Temperature control accuracy | PID±1℃ | PID±1℃ | PID±1℃ |
| Power supply | 3N-380V-50Hz | 3N-380V-50Hz | 3N-380V-50Hz |
| Heat transfer medium | Heat transfer oil | Heat transfer oil | Heat transfer oil |
| Cooling mode | Indirect cooling | Indirect cooling | Indirect cooling |
| Heating power | 24kW+24kW | 30kW+30kW | 40kW+40kW |
| Pump power | 1.1kW+1.1kW | 3kW+3kW | 3kW+3kW |
| Max. pump flow | 60L/min+60L/min | 100L/min+100L/min | 100L/min+100L/min |
| Max. pump pressure | 6kg/cm²+6kg/cm² | 8kg/cm²+8kg/cm² | 8kg/cm²+8kg/cm² |
| Max. power consumption | 50kW | 66kW | 88kW |
| Safety & alarm function | Pump reversal/Phase lack/Water shortage/Overtime/Overload /Undervoltage | ||
| Cooling water piping | ZG3/4 inch | ZG3/4 inch | ZG3/4 inch |
| Circulating water piping | ZG3/4 inch | ZG3/4 inch | ZG3/4 inch |
| Machine dimensions | 1385×580×1838mm | 1385×580×1838mm | 1435×680×1938mm |
Equipped with explosion-proof pressure relief devices, BY-PASS pressure relief circuits, and emergency oil tanks to prevent high-temperature and high-pressure accidents, protecting the system and pump.
Supports PLC or imported microcomputer control, with fault self-diagnosis and display, making parameter adjustment and maintenance simple.
Control range +45℃ to 350℃, suitable for multiple industries such as plastic molding, die casting, and rubber.
Heating power can be switched (rapid heating/stable holding). Automatic exhaust at startup, supports immediate cooling oil return, ensuring efficiency and safety.
Oil pump with reverse oil return function, more than 95% of the medium can be recycled, reducing heat transfer oil waste and environmental pollution.
All series use European and American high-temperature pipeline components, with good sealing, corrosion resistance, and high-temperature resistance, reducing leakage risks.
Electrical system is separated from high-temperature environments, extending the service life of electrical components.
Optional RS485, PLC, and remote communication interfaces, convenient for automation management and production line integration.
Oil pump power and heating capacity can be customized as required, adaptable to different processes.
Optional negative pressure operation mode to meet specific production needs.

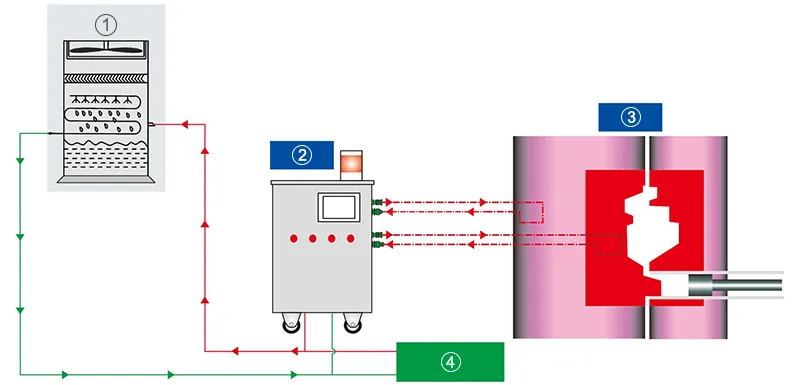

The oil based mold temperature controller uses heat transfer oil (such as mineral oil or synthetic oil) as the heat transfer medium. Through heating, circulation, and temperature feedback control, it achieves precise temperature regulation of industrial equipment. Its core advantages are strong high-temperature control capability and good temperature stability, applied to mold cold ends, mold frames, and cold end preheating.
We provide complete mold temperature control solutions to help you achieve stable quality, shorter cycles and reduced costs. Let’s find the right system for your needs.
Install temperature warning devices that trigger alarms if limits are exceeded, and prepare backup cooling or heating systems for immediate adjustment.
Select the cooling medium according to mold temperature requirements and operating environment (e.g., water or heat-transfer oil). Apply filtration and purification. For water, use rust inhibitors to prevent corrosion.
Standard warranty is 12 months from acceptance. It covers non-human faults with free repairs, replacement of faulty parts, and technical support.
A response system is in place with performance tracking. If service is unsatisfactory, customers may escalate complaints to customer support, which ensures follow-up by assigned personnel.
